Barn Style Armagh A2 Log Cabin 5.0m x 6.3m

€23,500.00 inc. Vat

STANDARD ARMAGH A2 LOG CABIN

Price includes:

  • PLEASE EXPAND TO READ ADDITIONAL INFORMATION

Built by our professional log cabin builders with years of experience in carpentry and log cabin building. 10 years structural warranty included for externally insulated log cabins and 2 years warranty for single skin log cabins.

Our uPVC coated TATA steel roof (top of the range & scratch resistant) is a single piece of steel from ridge to gutter, no leaks and no maintenance. Some suppliers give the option of a shingle roof or poor quality steel tiles, this is a cheap option that will not last.

It’s the LAW to have toughened safety glass if its below 800mm from the floor. All our glass doors & long windows are toughened safety glass (from both sides). Safety is first

Gutters and downpipes are frequently overlooked, however they play a vital role in protecting the log cabin. If not removed, rainwater will fall down the sides of your log cabin and splash back directly under your log cabin log ends, resulting in the onset of rot. Gutters and downpipes take care of this, increasing the longevity and lowering the maintenance requirements. We include them across our range as a standard. We believe saving on mandatory pieces of your log cabin is not worth its longevity.

External insulation consists of 100mm mineral wall insulation + breathable damp proof membrane + 25mm ventilated facade

100mm Mineral-wool roof insulation. nearly 80% of heat loss can occur through the roof, with 100mm of roof insulation, your heat will retain for far longer, saving you money on your winter heating bills. It also keeps the building cooler during hot summer weather. Don’t take risks, do it right, do it once!

100mm Mineral-wool floor insulation is included as our standard for all residential log cabins.

Our premium 28mm floor boards are the thickest boards on the market! These thick boards makes floor sturdy & strong. You can comfortably put heavy load on them without bending.

Roof boards cladding is internally visible. 19mm is perfect cost & strength balance.

Insulation is worthless unless it’s dry, all our cabins come with breathable damp-proof membranes.

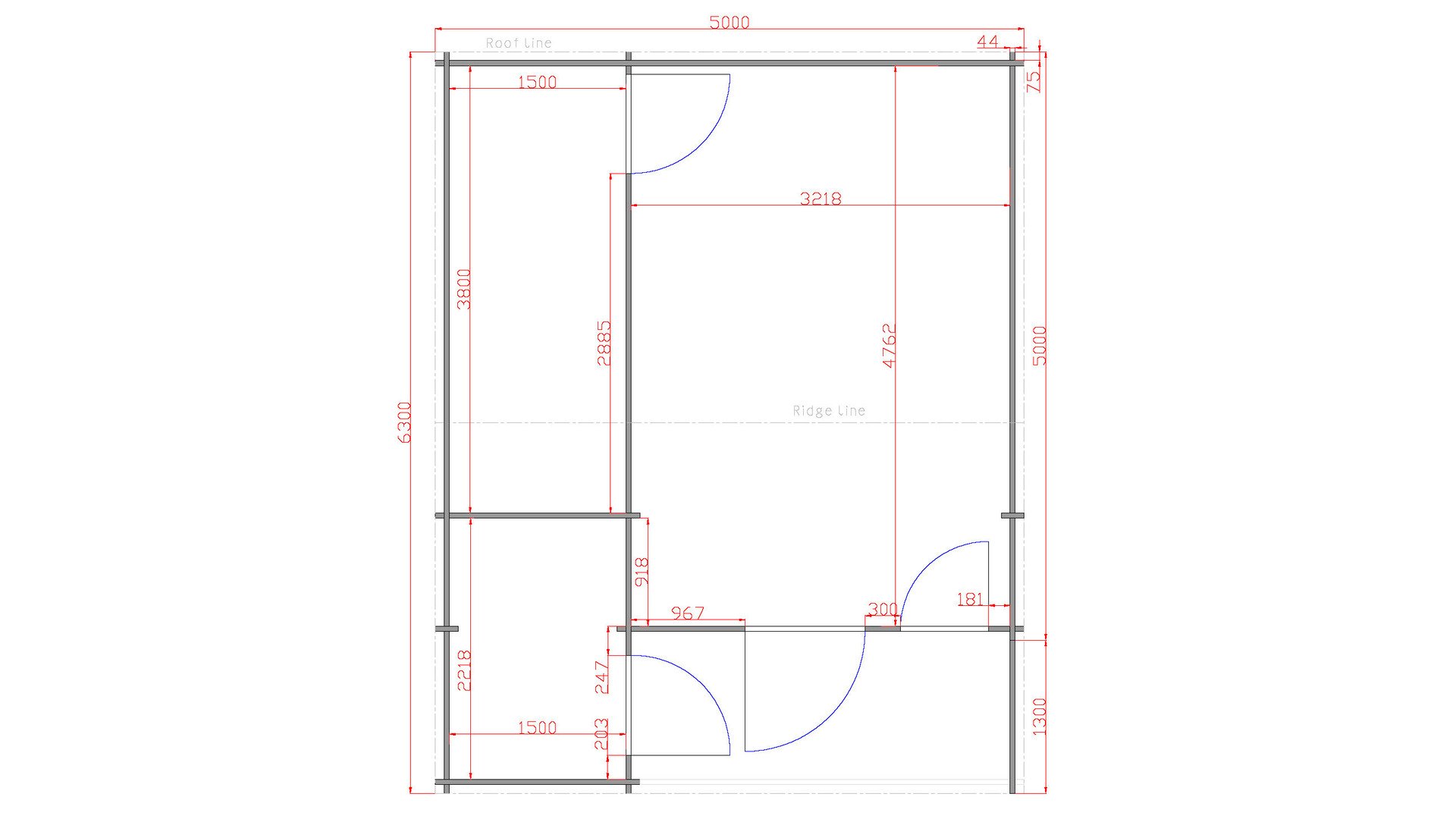

Cabin Specifications:

Size5m x 6.3m
Storage Room Width1.5m
Log Thickness44mm
Wall Insulation100mm
Floor Insulation100mm
Roof Insulation100mm
Wall Height2.265m
Ridge Height2.6m
Roof Boards19mm
Floor Boards28mm
Floor Bearers45mm x 100mm
Windows 1 x 7016 uPVC Single Window
Doors 2 x 7016 uPVC Single Doors, 1 x Internal Door
  • PLEASE EXPAND AND SELECT PRODUCT OPTIONS BELOW

Foundation type *

Client guarantees level foundation to our specifications. Please contact us to get specifications for your log cabin foundation.

This consists of a pressure treated timber frame, covered with damp proof membrane & mounted on stilts. These are positioned on concrete block pads, set in a meter grid formation and cemented in place to avoid lateral or vertical movement. A standard height step, the width of the door (or the opening of the veranda) and a cover up around the base are included. If located on a flat surface, the building will be raised approximately 20cm off the ground. If located on a slope, it may be raised higher, which can increase the cost.

Wall insulation / External finish *

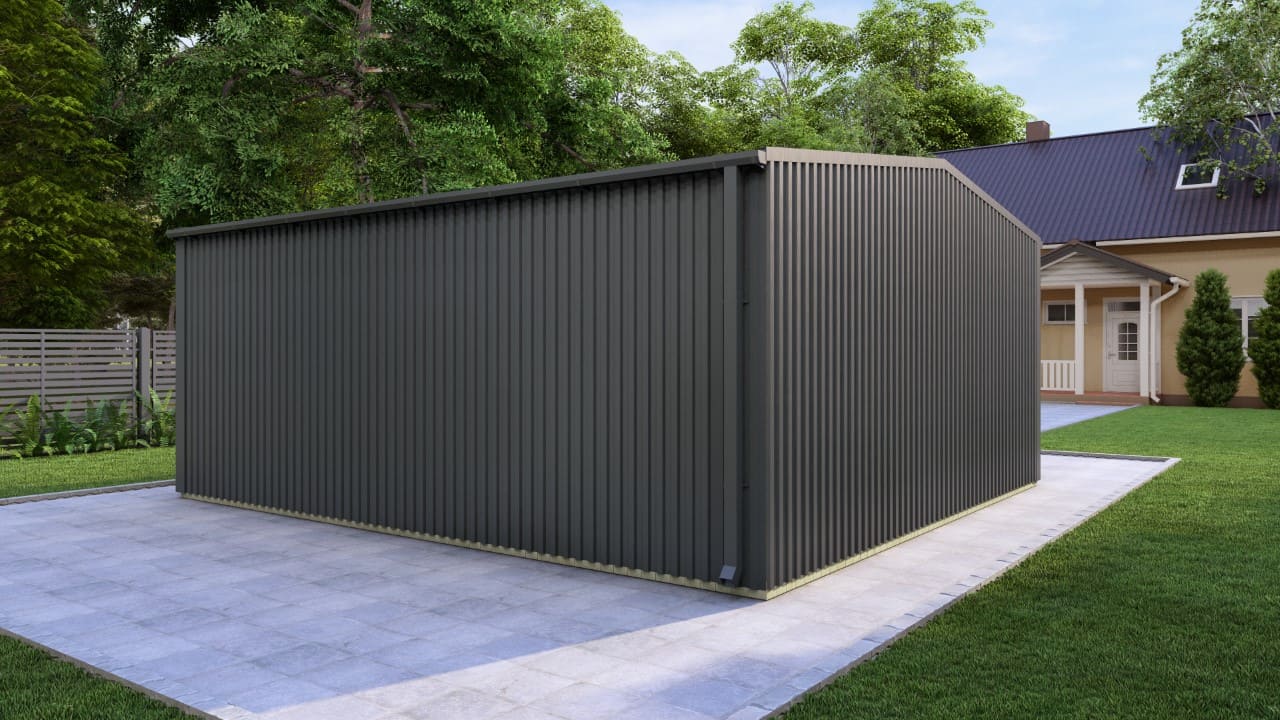

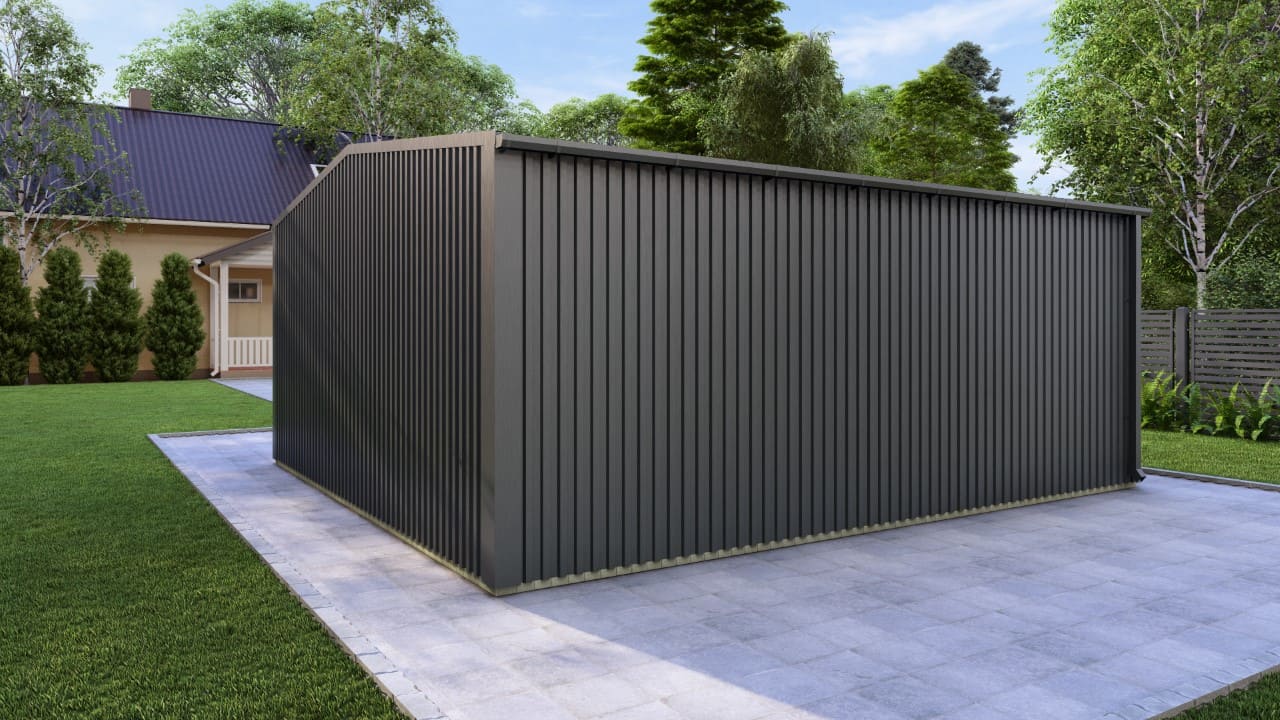

External insulation consists of 100mm insulation + breathable damp proof membrane + 25mm ventilated facade + steel cladding and treated shiplap cladding front wall.

Elevate your log cabin with our upgraded thermo wood featuring enhanced resistance to decay, reduced thermal conductivity, and removal of resin. Experience decreased splitting strength while maintaining structural integrity. Enjoy improved dimensional stability, consistent coloring, and lower equilibrium moisture content.

Windows & doors *

Argon gas filled, 24mm double glazing made of toughened safety glass, three point locks on windows, five point locks on doors. These are our highest insulated options for glazing and provide lower running costs as they do not require painting.

Argon gas filled, 24mm double glazing made of toughened safety glass, three point locks on windows, five point locks on doors. These are our highest insulated options for glazing and provide lower running costs as they do not require painting.

Painting *

Client is responsible to paint the log cabin within 4 weeks of completion as per warranty agreement.

1. Solid paint, wood wax or linseed oil
2. Oil-Based Primer (only comes with the solid paint)

Our in house professional painting team will perform following works on your cabin:
1. Remove window/door hardware, seals, and hinges.
2. Remove gutters/downpipes and roof flashings (flashings will be removed only prior to painting, not staining).
3. Fill screw holes on the windows/doors (architraves and frames).
4. Sand windows and doors fully (including frames).
5. Apply caulk to the open joints on the windows/doors including frames (only prior to painting, not staining).
6. Silicone seal the open joints on the walls, facias, window and door frames (externally).
7. Spot prime knots with oil-based primer (only prior to painting, not staining).
Our price is given for a standard 2 colour painting which includes the main colour on the body of the cabin and the second colour on the windows and doors (including frame). Any other requirements such as extra colours will be priced as a custom project.

Our in house professional painting team will perform following works on your cabin:
1. Remove window/door hardware, seals, and hinges.
2. Remove gutters/downpipes and roof flashings (flashings will be removed only prior to painting, not staining)
3. Fill screw holes on the windows/doors (architraves and frames).4. Sand windows and doors fully (including frames)
5. Apply caulk to the open joints on the windows/doors including frames (only prior to painting, not staining)
6. Silicone seal the open joints on the walls, facias, window and door frames (externally)
7. Spot prime knots with oil-based primer (only prior to painting, not staining)
Our price is given for a standard 2 colour painting which includes the main colour on the body of the cabin and the second colour on the windows and doors (including frame). Any other requirements such as extra colours will be priced as a custom project.

Product price: €23,500.00 inc. Vat
Total options:
Order total:
Add to quote
  • Free Delivery ROI
SKU: Armagh A2 5050-45 68SDGs SC Categories: , Tags: , , , , ,

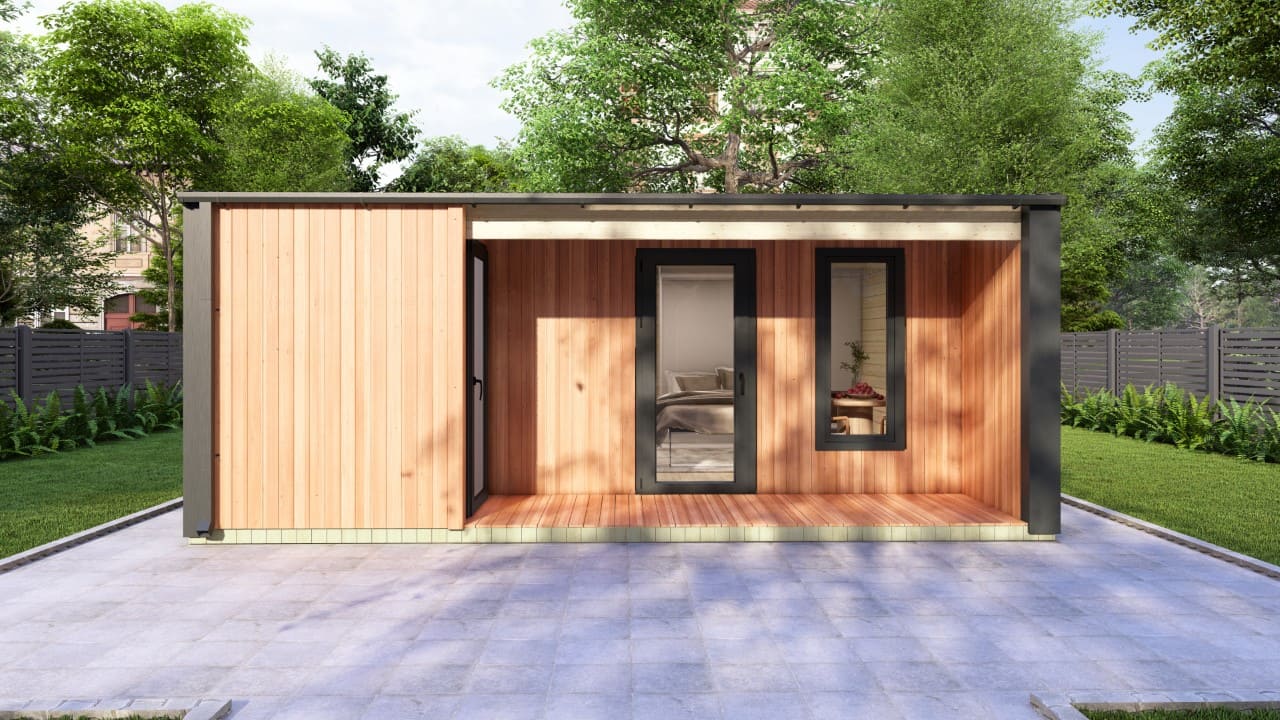

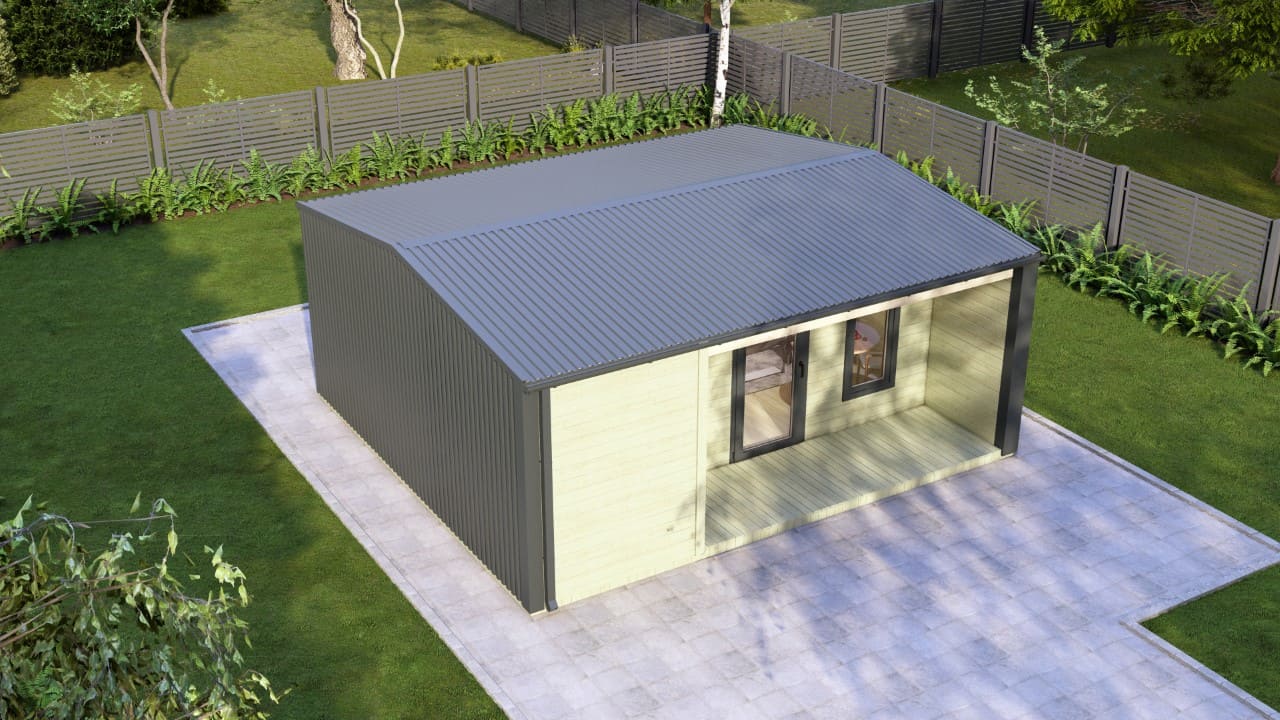

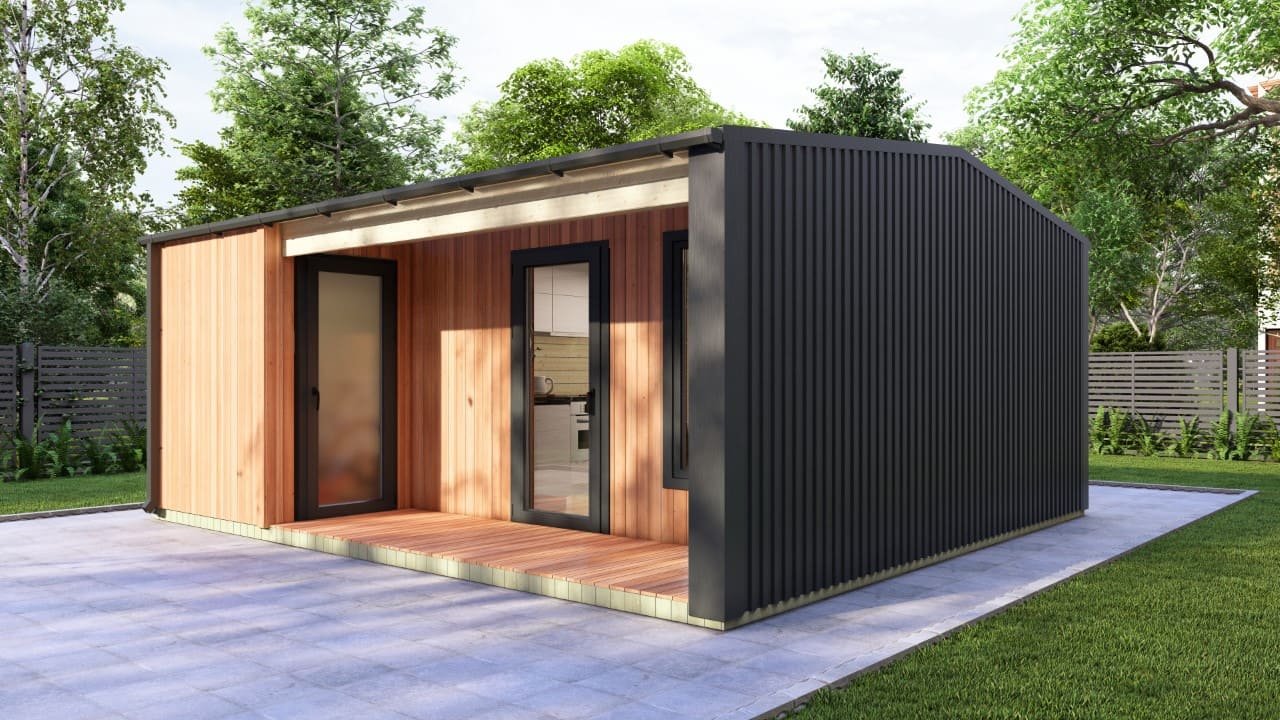

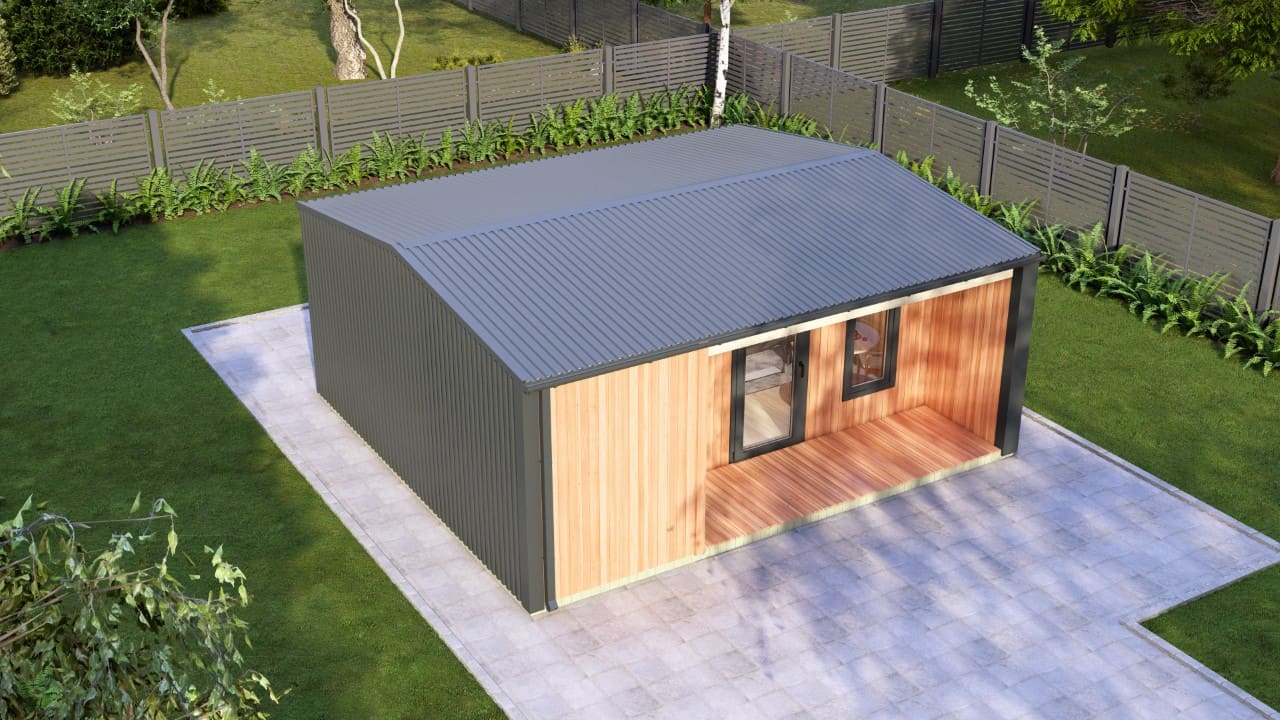

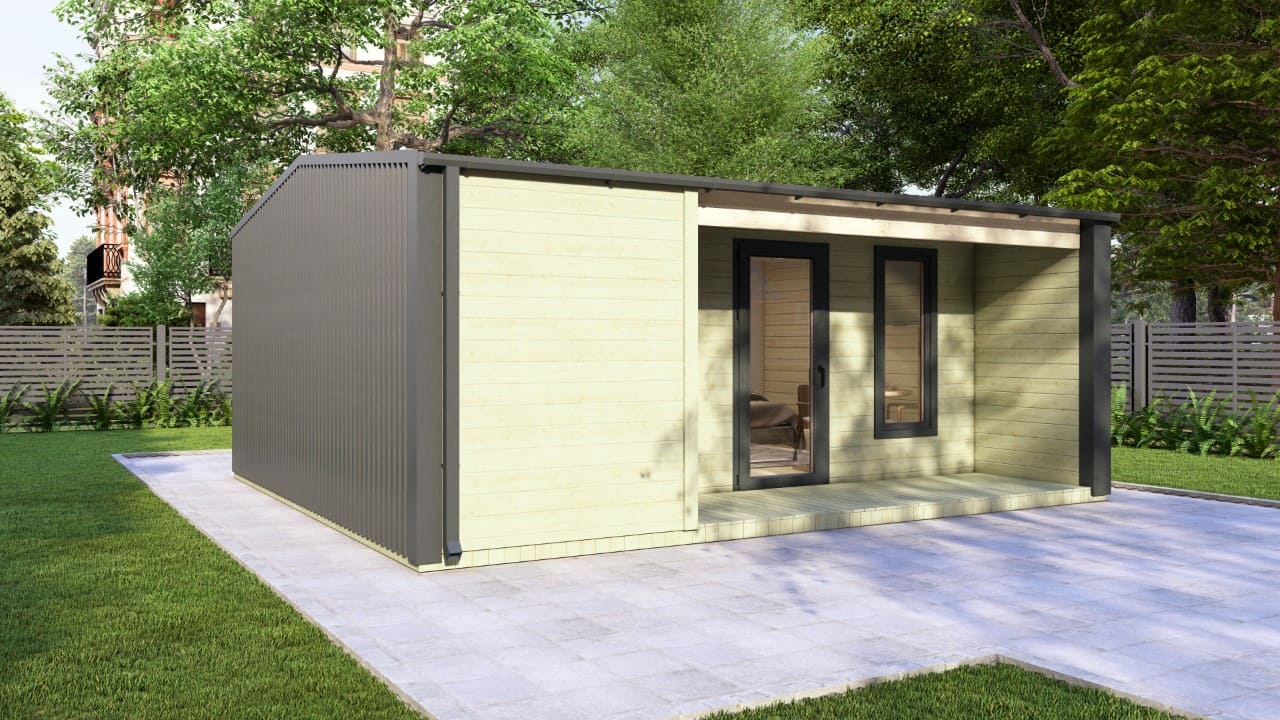

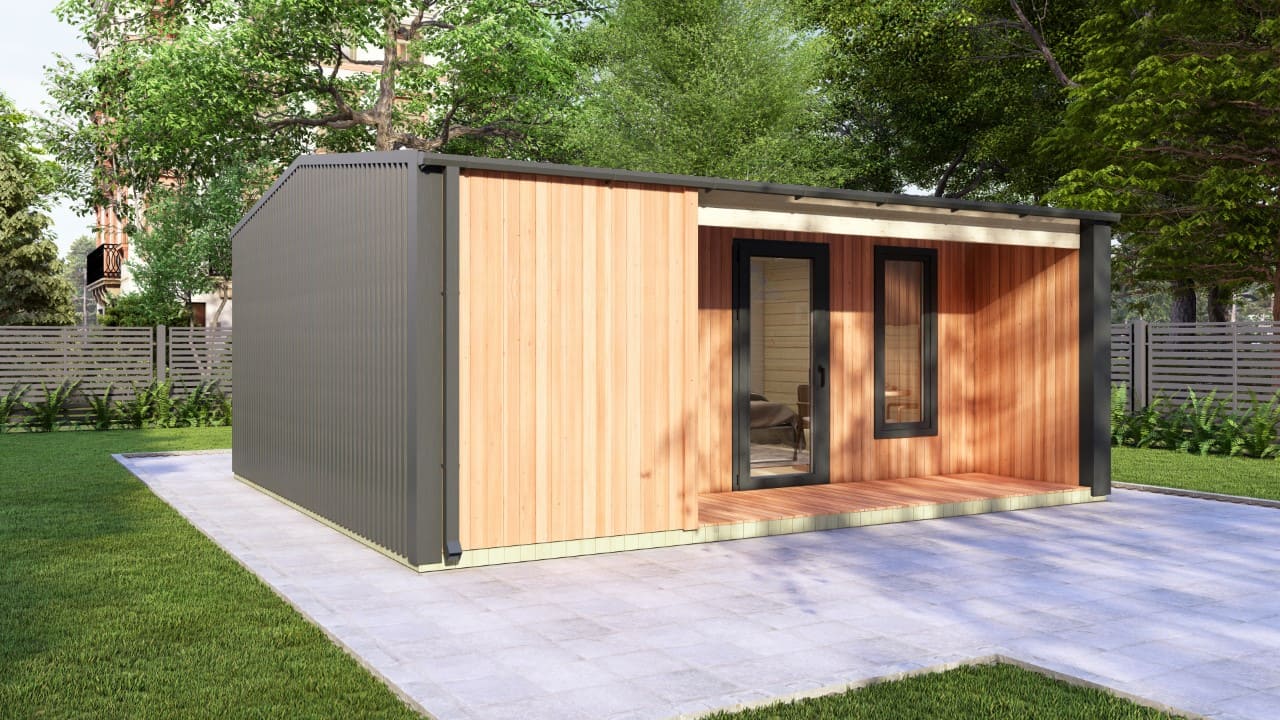

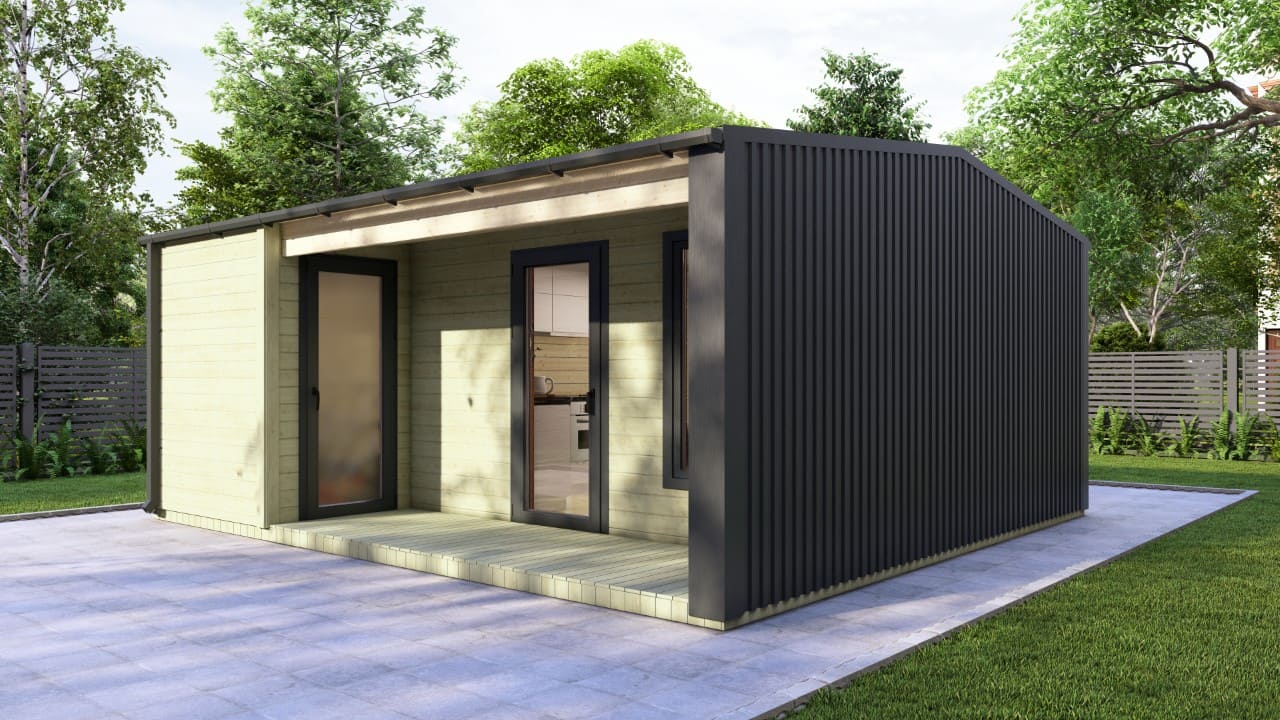

Introducing the Barn Style Armagh Type A2 Cabin, featuring the same clever, space-efficient design as our Armagh Type A2 with shiplap cladding. This cabin comes with an overhang that shelters both the entrance and the outdoor storage area. This addition provides extra protection from the elements while enhancing the cabin’s overall functionality.

This cabin also includes a veranda—perfect for outdoor seating or relaxing under cover—so you can enjoy the fresh air, rain or shine.

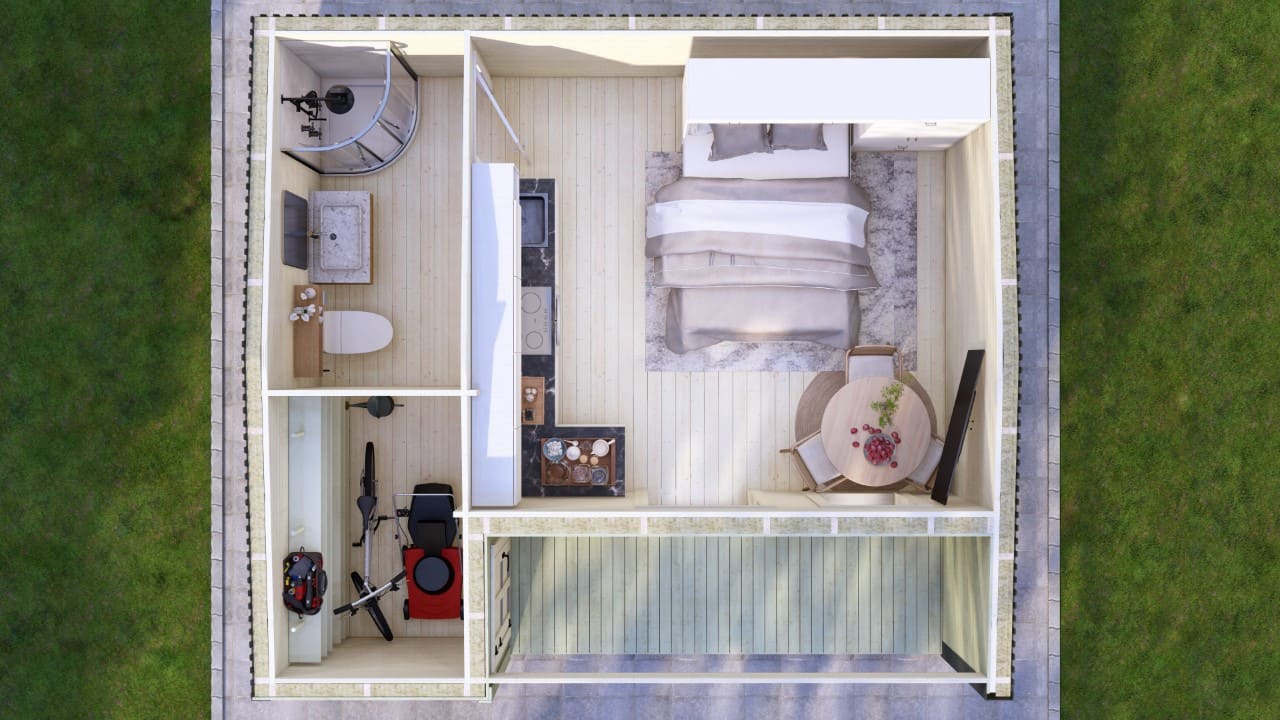

Inside, the cabin retains the open-plan layout of the Armagh Type A, making it ideal for a Murphy bed or pullout bed. This allows you to maximise space during the day by transforming the sleeping area into a living or working zone. The layout also includes space for a compact kitchen, a private bathroom, and has an outdoor storage room for your convenience.

The Barn Style Armagh A2 log cabin is available in the following sizes:

If you have any further queries or if this model is not exactly what you are looking for, we specialize in bespoke cabins and can create a cabin from your own custom design! Contact us today or call us on 01 564 1964, we look forward to helping you.
