One Bedroom E Log Cabin 5.4m x 6.7m

21,810.00 inc. Vat

UPGRADE TO BARN STYLE 1 BED E LOG CABIN

Price includes:

  • PLEASE EXPAND TO READ ADDITIONAL INFORMATION

Built by our professional log cabin builders with years of experience in carpentry and log cabin building. 10 years structural warranty included for externally insulated log cabins and 2 years warranty for single skin log cabins.

Our uPVC coated TATA steel roof (top of the range & scratch resistant) is a single piece of steel from ridge to gutter, no leaks and no maintenance. Some suppliers give the option of a shingle roof or poor quality steel tiles, this is a cheap option that will not last.

Gutters and downpipes are frequently overlooked, however they play a vital role in protecting the log cabin. If not removed, rainwater will fall down the sides of your log cabin and splash back directly under your log cabin log ends, resulting in the onset of rot. Gutters and downpipes take care of this, increasing the longevity and lowering the maintenance requirements. We include them across our range as a standard. We believe saving on mandatory pieces of your log cabin is not worth its longevity.

100mm Mineral-wool roof insulation. nearly 80% of heat loss can occur through the roof, with 100mm of roof insulation, your heat will retain for far longer, saving you money on your winter heating bills. It also keeps the building cooler during hot summer weather. Don’t take risks, do it right, do it once!

100mm Mineral-wool floor insulation is included as our standard for all garden log cabins.

Our premium 28mm floor boards are the thickest boards on the market! These thick boards makes floor sturdy & strong. You can comfortably put heavy load on them without bending.

Roof boards cladding is internally visible. 19mm is perfect cost & strength balance.

It’s the LAW to have toughened safety glass if its below 800mm from the floor. All our glass doors & long windows are toughened safety glass (from both sides). Safety is first

All our cabins have premium glulam timber living type windows and doors. 24mm double glazing with this frame and 5-point locking mechanisms is standard. To reduce the maintenance we recommend upgrading to UPVC windows and doors. See the options below.

Insulation is worthless unless its dry, all our cabins comes with breathable damp proof membranes.

My Cabin is the official distributor of Tikkurila paint and Osmo stain products in Ireland. These are some of the best products available and are highly suited to protect log cabins and log homes. Included in all off the shelf models is enough paint or stain to cover at least two coats (exterior) as well as primer and sealer. With these products, your new cabin or home will not only look fantastic, you have peace of mind knowing that your new cabin or home will be well protected from whatever the Irish weather can come up with! As we mix the paint in house, you can choose any colour you wish.

Cabin Specifications:

Size5.4m x 6.7m
Storage Room Widthn/a
Log Thickness44mm
Floor Insulation100mm
Roof Insulation100mm
Wall Height2.2m
Ridge Height3.315m
Roof Boards19mm
Floor Boards28mm
Floor Bearers45mm x 100mm
Windows2 x Premium Double Window, 2 x Premium Single Windows
Doors1 x Premium Single Door, 2 x Internal Doors
  • PLEASE EXPAND AND SELECT PRODUCT OPTIONS BELOW

Foundation type *

Client guarantees level foundation to our specifications. Please contact us to get specifications for your log cabin foundation.

This consists of a pressure treated timber frame, covered with damp proof membrane & mounted on stilts. These are positioned on concrete block pads, set in a meter grid formation and cemented in place to avoid lateral or vertical movement. A standard height step, the width of the door (or the opening of the veranda) and a cover up around the base are included. If located on a flat surface, the building will be raised approximately 20cm off the ground. If located on a slope, it may be raised higher, which can increase the cost.

Wall insulation *

Only advisable for storage units, not suitable for residential log cabins or home offices. Buildings with uninsulated walls are inefficient to heat and are not protected by pressure treated cladding, decreasing the longevity of the building. This results in increased heating & maintenance costs over the lifespan of the building. Uninsulated walls get only two years structural warranty.

External insulation consists of 100mm insulation + breathable damp proof membrane + 25mm ventilated facade + 19mm pressure treated ship-lap cladding. This the highest standard option, the structural wall is never exposed to the elements as the pressure treated cladding protects the building, increasing longevity and lowering maintenance costs. This comes with a ten-year structural warranty.

Windows & doors *

Included in price our premium glue laminated timber windows with 24mm toughened safety glazing, 3-point locks on the windows, 5-point locks on external doors. Flag hinges (fully adjustable). These windows come unpainted and require to be painted by the customer. See our painting packages below to get these windows painted or upgrade to uPVC windows, a maintenance-free option.

Argon gas filled, 24mm double glazing made of toughened safety glass, three point locks on windows, five point locks on doors. These are our highest insulated option for glazing and provide lower running costs as they do not require painting.

Argon gas filled, 24mm double glazing made of toughened safety glass, three point locks on windows, five point locks on doors. These are our highest insulated option for glazing and provide lower running costs as they do not require painting.

Painting *

Client is responsible to paint the log cabin within 4 weeks of completion as per warranty agreement.

1. Solid paint, wood wax or linseed oil
2. Oil-Based Primer (only comes with the solid paint)

Our in house professional painting team will perform following works on your cabin:
1. Remove window/door hardware, seals, and hinges.
2. Remove gutters/downpipes and roof flashings (flashings will be removed only prior to painting, not staining)
3. Fill screw holes on the windows/doors (architraves and frames).4. Sand windows and doors fully (including frames)
5. Apply caulk to the open joints on the windows/doors including frames (only prior to painting, not staining)
6. Silicone seal the open joints on the walls, facias, window and door frames (externally)
7. Spot prime knots with oil-based primer (only prior to painting, not staining)
Our price is given for a standard 2 colour painting which includes the main colour on the body of the cabin and the second colour on the windows and doors (including frame). Any other requirements such as extra colours will be priced as a custom project.

Our in house professional painting team will perform following works on your cabin:
1. Remove window/door hardware, seals, and hinges.
2. Remove gutters/downpipes and roof flashings (flashings will be removed only prior to painting, not staining)
3. Fill screw holes on the windows/doors (architraves and frames)
4. Sand windows and doors fully (including frames)
5. Apply caulk to the open joints on the windows/doors including frames (only prior to painting, not staining)
6. Silicone seal the open joints on the walls, facias, window and door frames (externally)
7. Spot prime knots with oil-based primer (only prior to painting, not staining)
Our price is given for a standard 2 colour painting which includes the main colour on the body of the cabin and the second colour on the windows and doors (including frame). Any other requirements such as extra colours will be priced as a custom project.

Product price:21,810.00 inc. Vat
Total options:
Order total:
  • Free Delivery up to 50km from W91HFN55
SKU: ONE BED E 5459-44 68SDGs Categories: , Tags: , , ,

Our Latest Barn Style One Bed E Type Cabin!

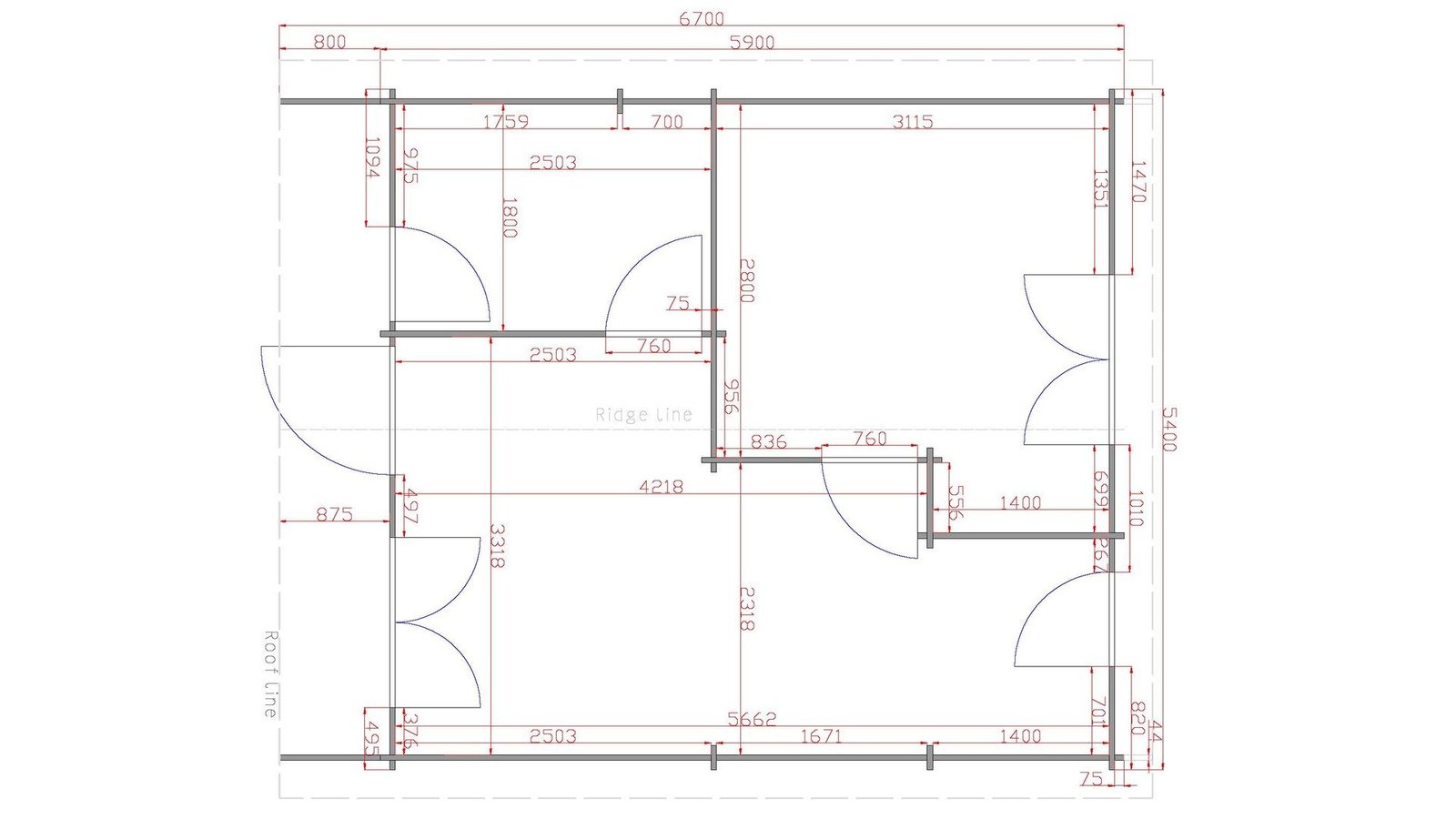

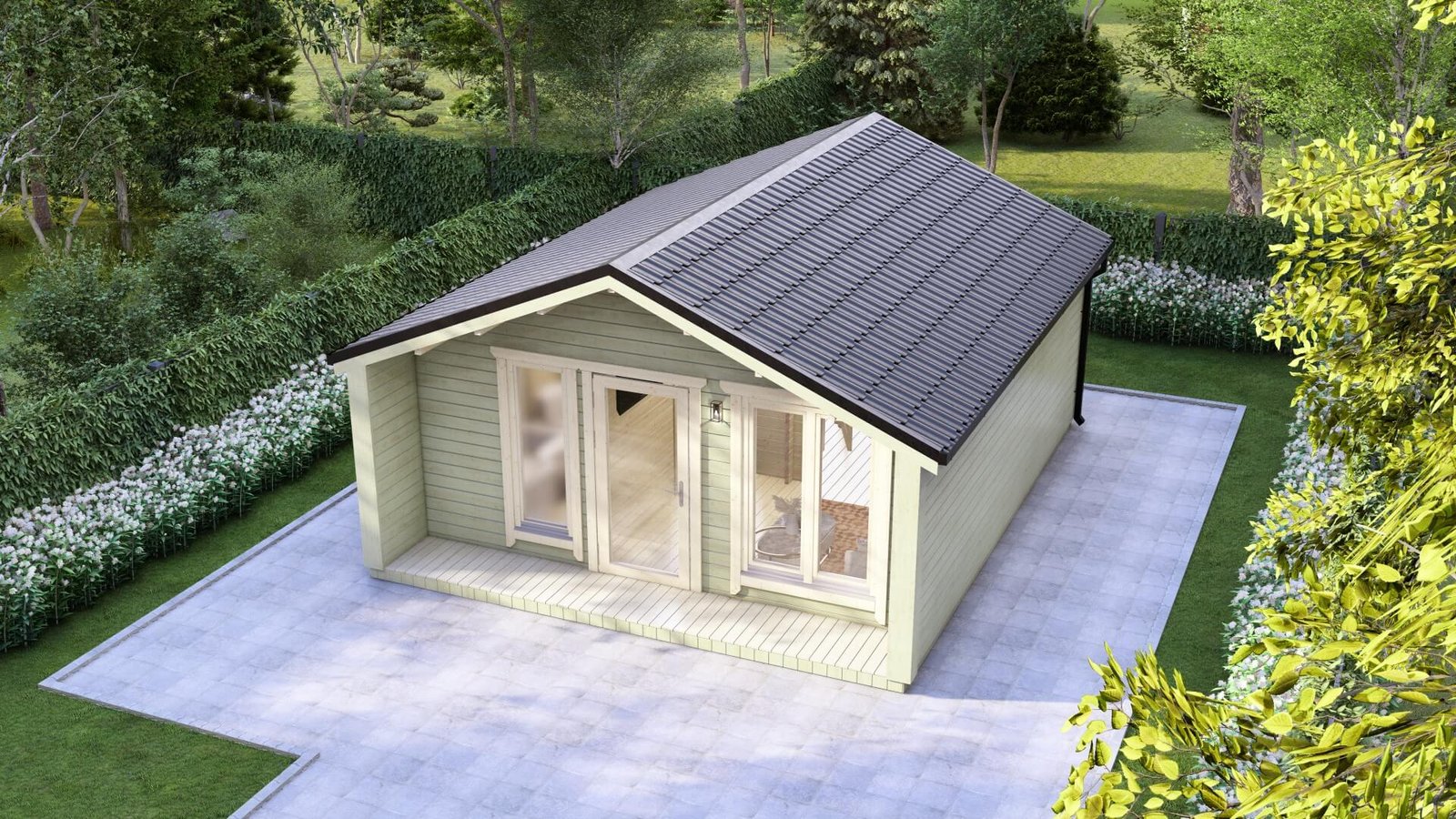

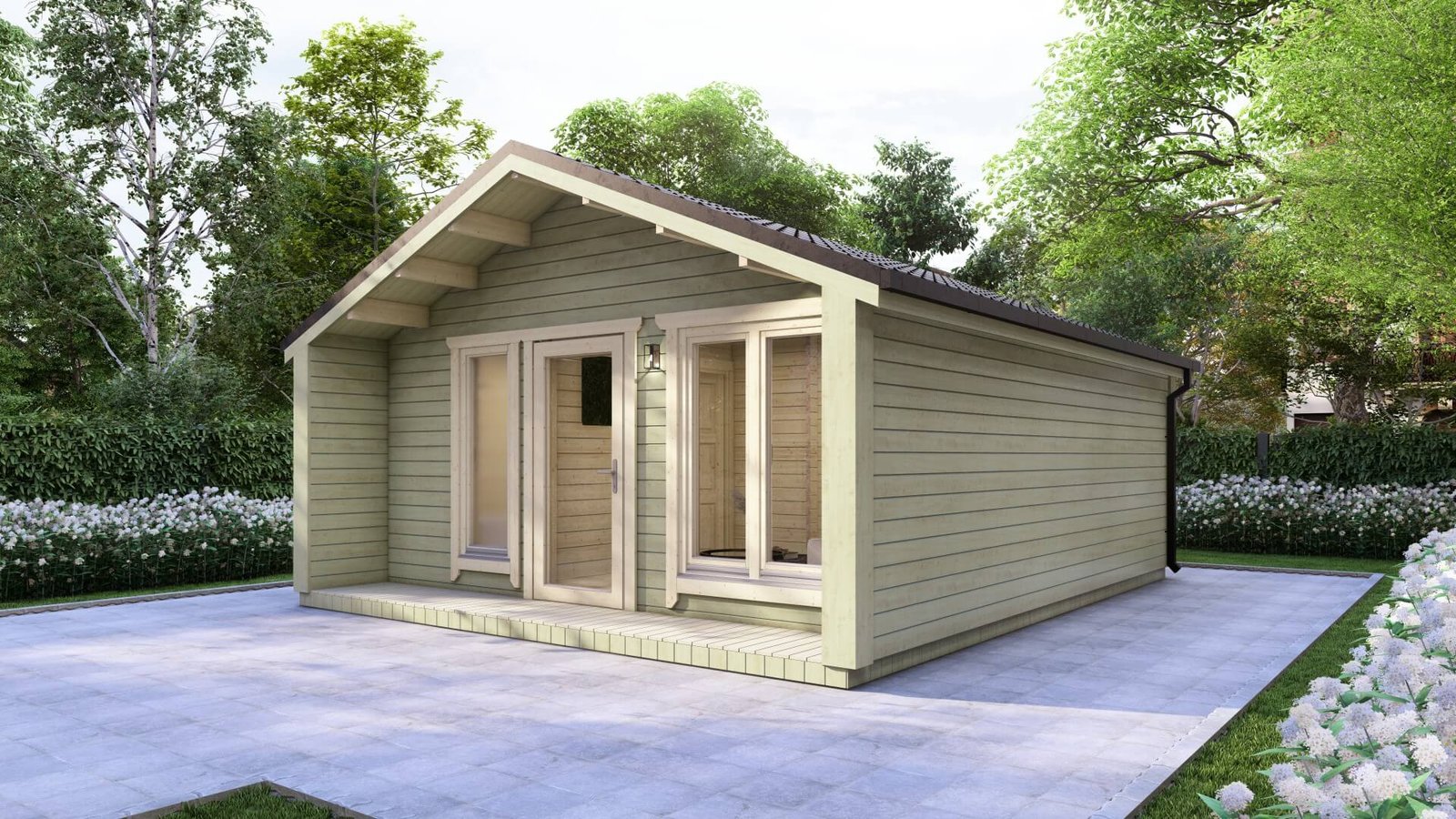

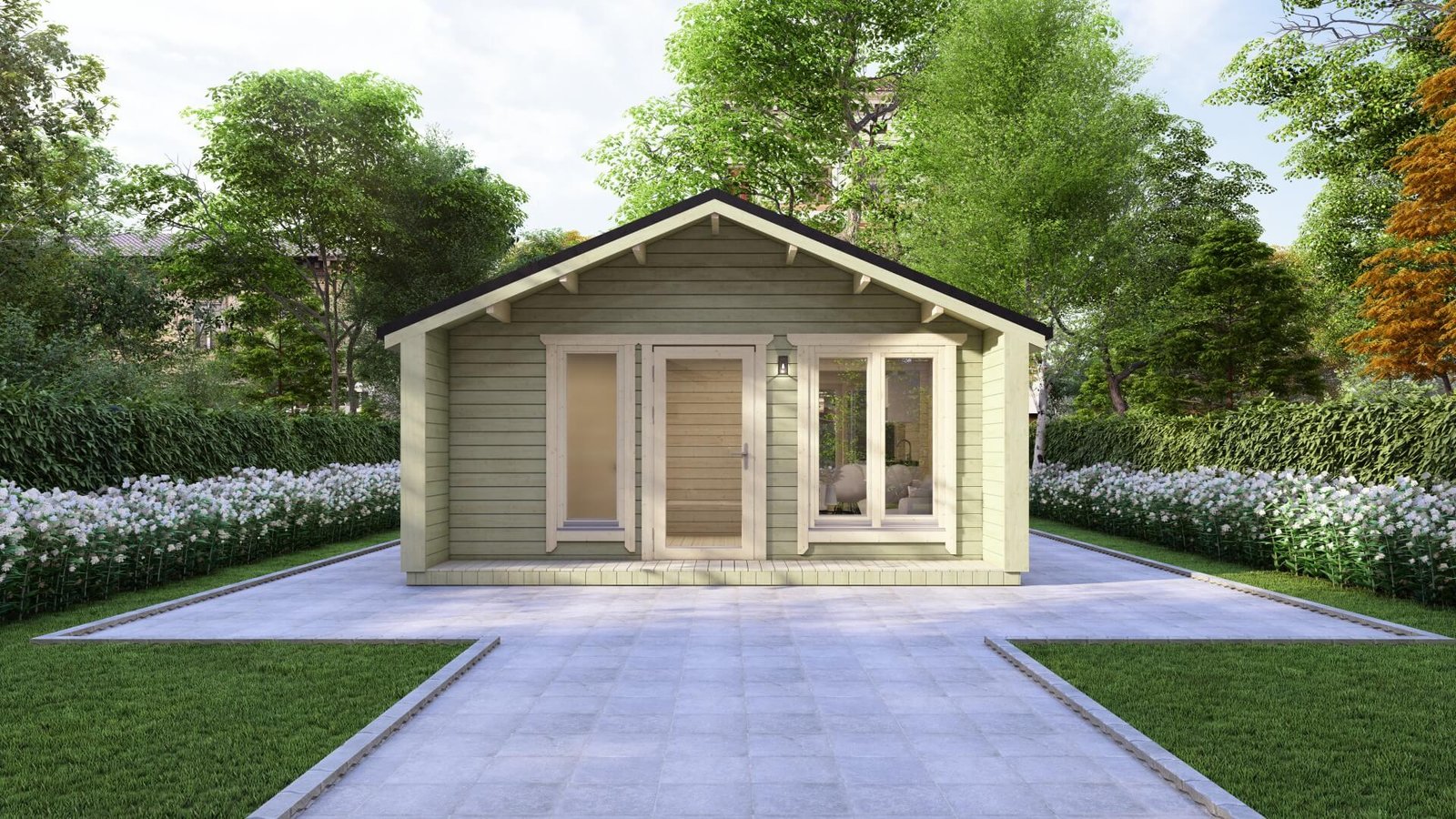

Measuring 5.4m x 6.7m, this Barn Style Log Cabin welcomes you through a single door in the center of the full-width veranda. Featuring a double window and a single window on either side of the door, the living/dining room and kitchen are flooded with natural light. A ceiling height of up to 3m creates an airy, spacious feeling in the cabin.

A family-sized bathroom is located at the front of the cabin. There is a generously proportioned double bedroom at the rear, cleverly designed to offer a variety of storage options. This cabin is an ideal starter home, offering independent living.

This cabin provides flexibility in style with a choice between our classic ship lap cladding or low-maintenance steel cladding. Moreover, we can also offer an optional comprehensive package inclusive of electrical and plumbing work, as well as the installation of kitchen and bathroom units, ensuring a hassle-free experience for our customers.

If you have any further queries or if this model is not exactly what you are looking for, we specialize in bespoke cabins and can create a cabin from your own custom design! Contact us today or call us on 01 564 1964 . We look forward to helping you.
