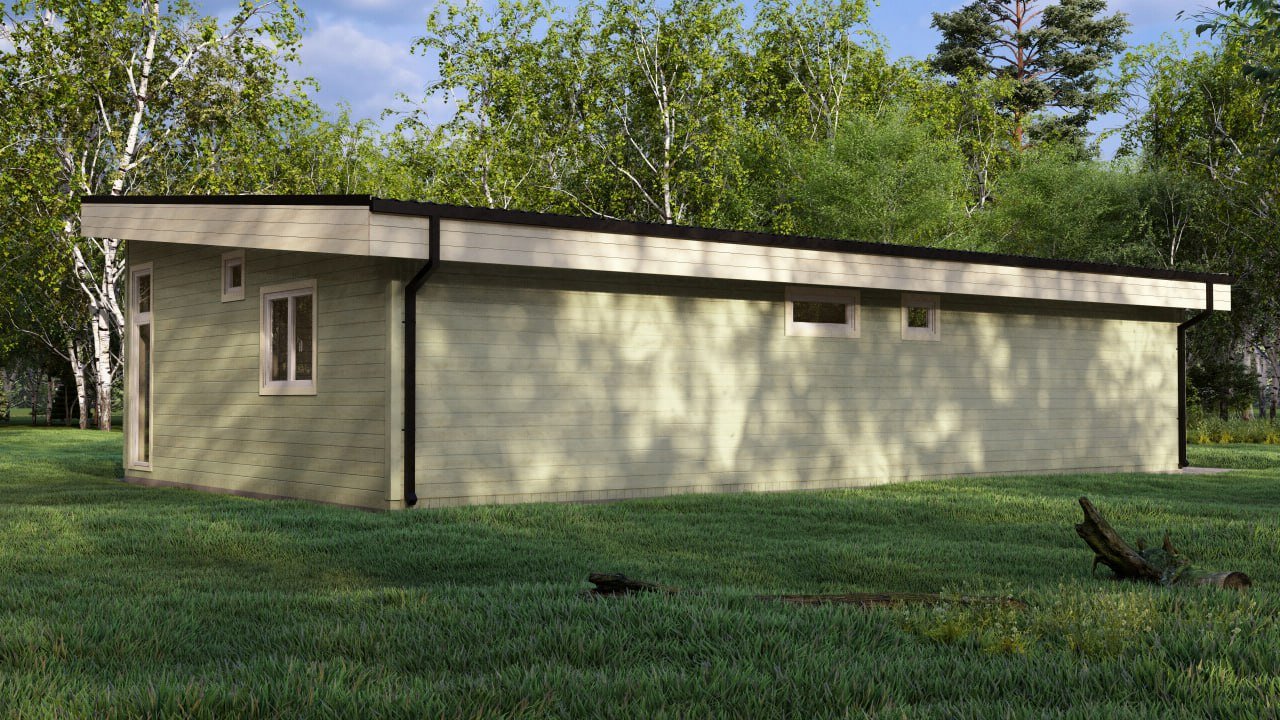

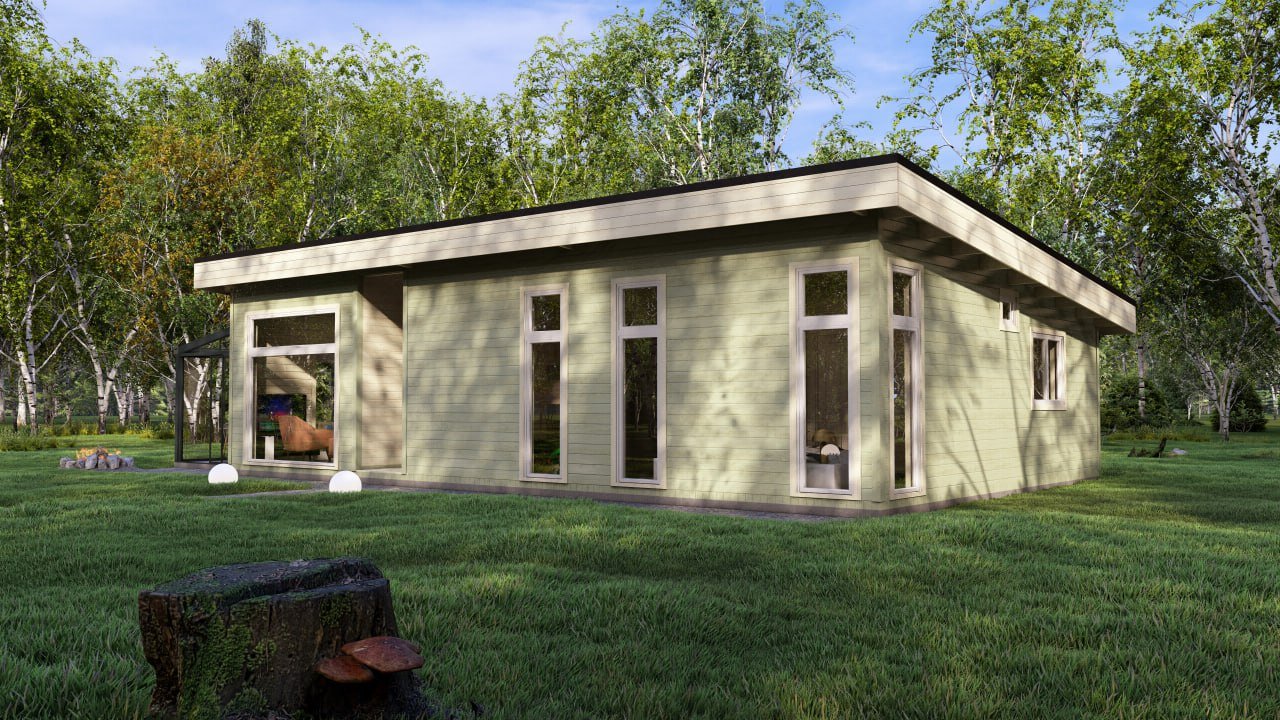

Three Bedroom D Log Cabin 12.5m x 7.5m

€59,920.00 inc. Vat

BARN STYLE 3 BED D LOG CABIN

Price includes:

  • PLEASE EXPAND TO READ ADDITIONAL INFORMATION

Built by our professional log cabin builders with years of experience in carpentry and log cabin building. 10 years structural warranty included for externally insulated log cabins and 2 years warranty for single skin log cabins.

Our uPVC coated TATA steel roof (top of the range & scratch resistant) is a single piece of steel from ridge to gutter, no leaks and no maintenance. Some suppliers give the option of a shingle roof or poor quality steel tiles, this is a cheap option that will not last.

Gutters and downpipes are frequently overlooked, however they play a vital role in protecting the log cabin. If not removed, rainwater will fall down the sides of your log cabin and splash back directly under your log cabin log ends, resulting in the onset of rot. Gutters and downpipes take care of this, increasing the longevity and lowering the maintenance requirements. We include them across our range as a standard. We believe saving on mandatory pieces of your log cabin is not worth its longevity.

100mm Mineral-wool roof insulation. nearly 80% of heat loss can occur through the roof, with 100mm of roof insulation, your heat will retain for far longer, saving you money on your winter heating bills. It also keeps the building cooler during hot summer weather. Don’t take risks, do it right, do it once!

100mm Mineral-wool floor insulation is included as our standard for all residential log cabins.

Our premium 28mm floor boards are the thickest boards on the market! These thick boards makes floor sturdy & strong. You can comfortably put heavy load on them without bending.

Roof boards cladding is internally visible. 19mm is perfect cost & strength balance.

It’s the LAW to have toughened safety glass if its below 800mm from the floor. All our glass doors & long windows are toughened safety glass (from both sides). Safety is first

Insulation is worthless unless it’s dry, all our cabins come with breathable damp-proof membranes.

Cabin Specifications:

Size12.5m x 7.5m
Storage Room Widthn/a
Log Thickness44mm
Floor Insulation100mm
Roof Insulation100mm
Wall Height2.47m
Ridge Height3.25m
Roof Boards19mm
Floor Boards28mm
Floor Bearers45mm x 100mm
Windows2 x White uPVC Double Windows, 7 x White uPVC Single Windows, 1 x White uPVC fixed pannel window
Doors1 x White uPVC Single Door, 1 x White uPVC Patio Double Door, 7 Internal Doors
  • PLEASE EXPAND AND SELECT PRODUCT OPTIONS BELOW

Foundation type *

Client guarantees level foundation to our specifications. Please contact us to get specifications for your log cabin foundation.

This consists of a pressure treated timber frame, covered with damp proof membrane & mounted on stilts. These are positioned on concrete block pads, set in a meter grid formation and cemented in place to avoid lateral or vertical movement. A standard height step, the width of the door (or the opening of the veranda) and a cover up around the base are included. If located on a flat surface, the building will be raised approximately 20cm off the ground. If located on a slope, it may be raised higher, which can increase the cost.

Wall log thickness *

44mm wall thickness comes as standard in all our garden type cabins, external wall insulation upgrade is a must if the structure is being used for residential purpose.

60mm wall thickness upgrade is highly recommended as this will make your cabin more structurally solid. This wall thickness will reduce movement in the walls. External wall insulation upgrade is a must if the structure is being used for residential purpose.

Wall Insulation *

Only advisable for storage units, not suitable for residential log cabins or home offices. Buildings with uninsulated walls are inefficient to heat and are not protected by pressure treated cladding, decreasing the longevity of the building. This results in increased heating & maintenance costs over the lifespan of the building. Uninsulated walls get only two years structural warranty.

External insulation consists of 100mm insulation + breathable damp proof membrane + 25mm ventilated facade + 19mm pressure treated ship-lap cladding. This the highest standard option, the structural wall is never exposed to the elements as the pressure treated cladding protects the building, increasing longevity and lowering maintenance costs. This comes with a ten-year structural warranty.

Windows & doors *

Argon gas filled, 24mm double glazing made of toughened safety glass, three point locks on windows, five point locks on doors. These are our highest insulated options for glazing and provide lower running costs as they do not require painting.

Argon gas filled, 24mm double glazing made of toughened safety glass, three point locks on windows, five point locks on doors. These are our highest insulated options for glazing and provide lower running costs as they do not require painting.

Painting *

Client is responsible to paint the log cabin within 4 weeks of completion as per warranty agreement.

1. Solid paint, wood wax or linseed oil
2. Oil-Based Primer (only comes with the solid paint)

Our in house professional painting team will perform following works on your cabin:
1. Remove window/door hardware, seals, and hinges.
2. Remove gutters/downpipes and roof flashings (flashings will be removed only prior to painting, not staining)
3. Fill screw holes on the windows/doors (architraves and frames).4. Sand windows and doors fully (including frames)
5. Apply caulk to the open joints on the windows/doors including frames (only prior to painting, not staining)
6. Silicone seal the open joints on the walls, facias, window and door frames (externally)
7. Spot prime knots with oil-based primer (only prior to painting, not staining)
Our price is given for a standard 2 colour painting which includes the main colour on the body of the cabin and the second colour on the windows and doors (including frame). Any other requirements such as extra colours will be priced as a custom project.

Our in house professional painting team will perform following works on your cabin:
1. Remove window/door hardware, seals, and hinges.
2. Remove gutters/downpipes and roof flashings (flashings will be removed only prior to painting, not staining)
3. Fill screw holes on the windows/doors (architraves and frames).4. Sand windows and doors fully (including frames)
5. Apply caulk to the open joints on the windows/doors including frames (only prior to painting, not staining)
6. Silicone seal the open joints on the walls, facias, window and door frames (externally)
7. Spot prime knots with oil-based primer (only prior to painting, not staining)
Our price is given for a standard 2 colour painting which includes the main colour on the body of the cabin and the second colour on the windows and doors (including frame). Any other requirements such as extra colours will be priced as a custom project.

Glass veranda *

3 BED D Glass veranda option -MyCabin.ie

You can add 3 x 3 meter glass veranda as an add on with 8mm glass roof and sliding door all around. For more details please ask our sales team.

Product price: €59,920.00 inc. Vat
Total options:
Order total:
Add to quote
  • Free Delivery ROI
SKU: 3 BED D 75125-45 SC Categories: , Tags: , , ,

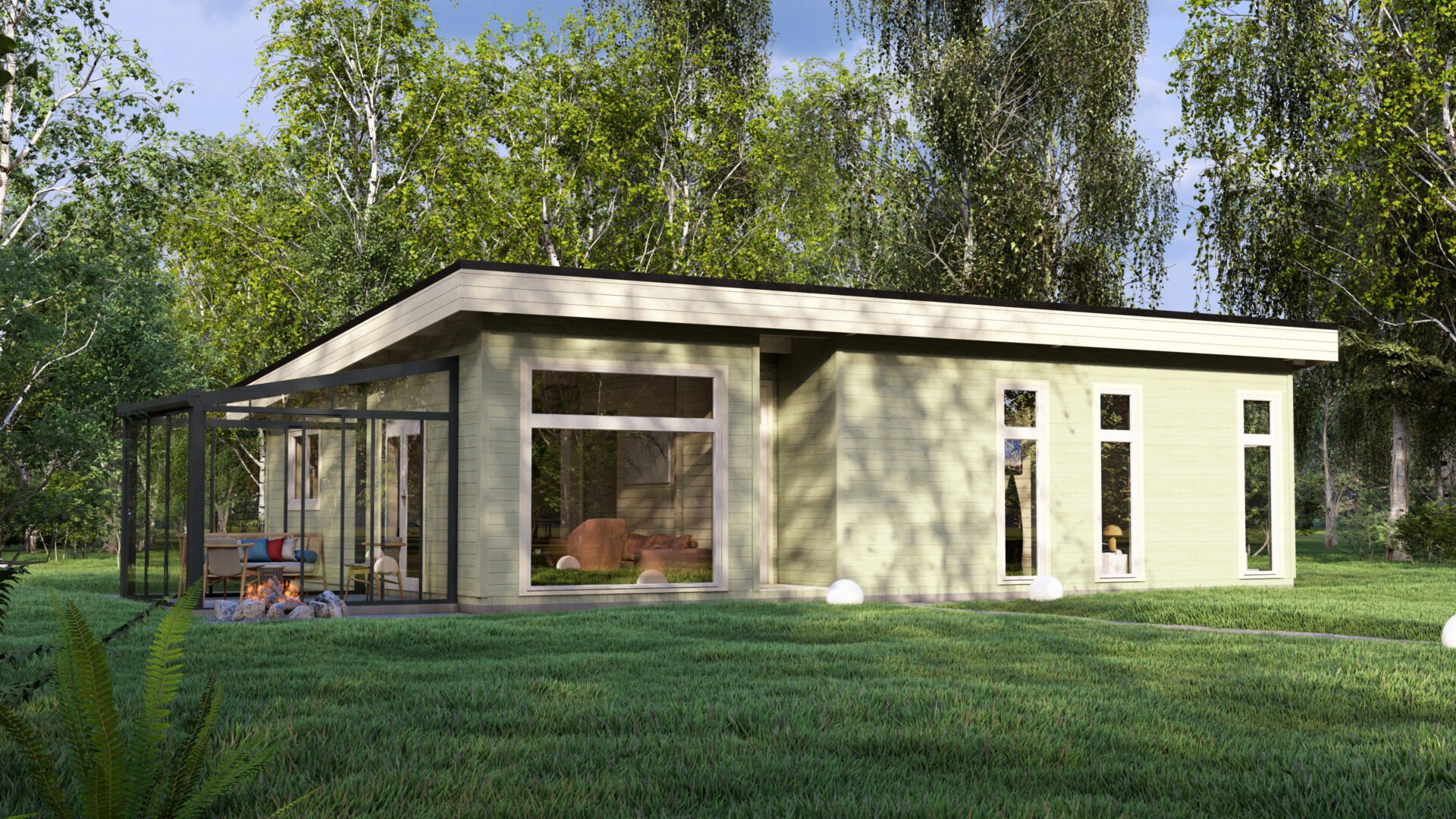

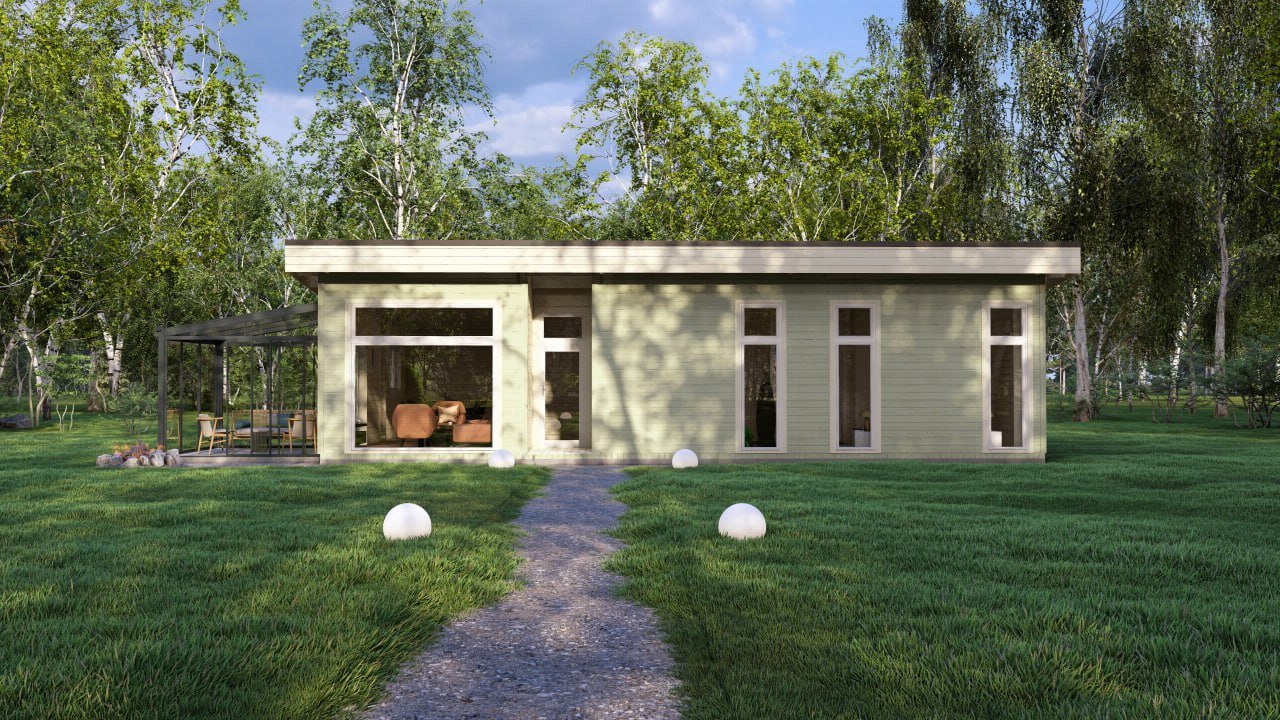

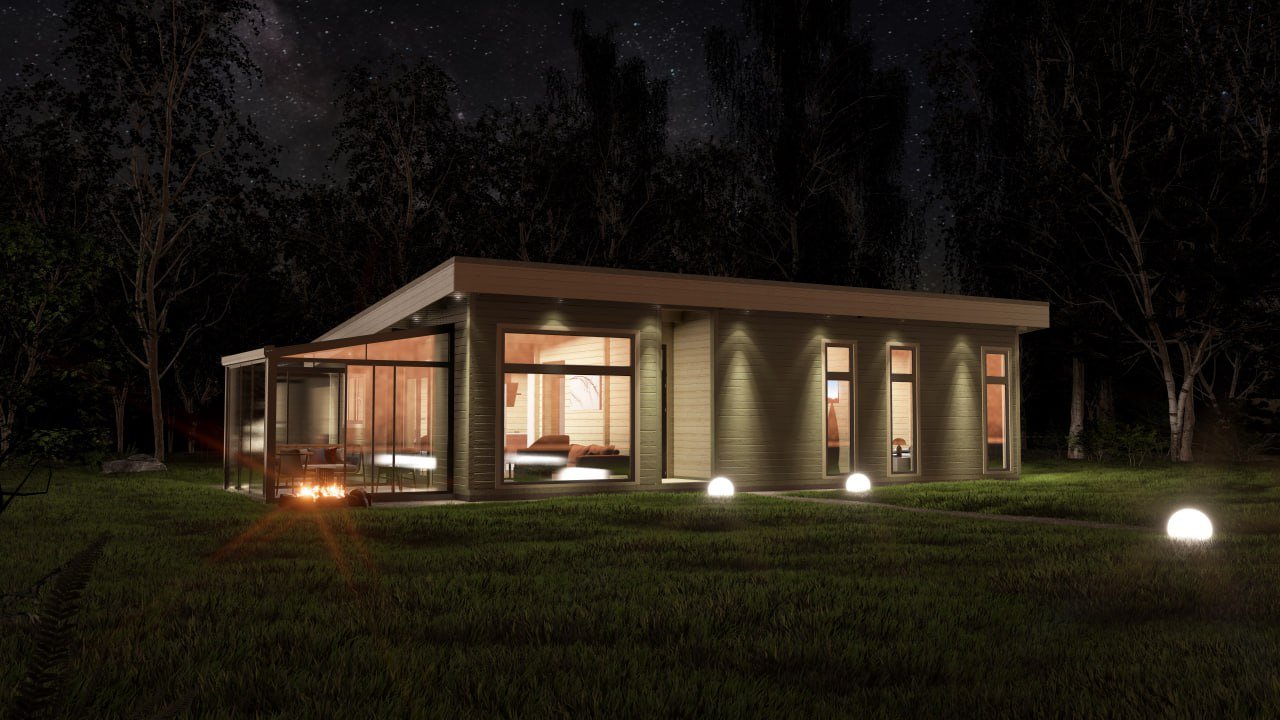

Welcome to the newest and most inviting Log Cabin in our Residential Range.
Introducing our 3 Bedroom D! Big enough for the whole family.
You will quickly begin to realize that this Log Cabin redefines what you thought a log home could be and will take that “wow” factor up a notch!

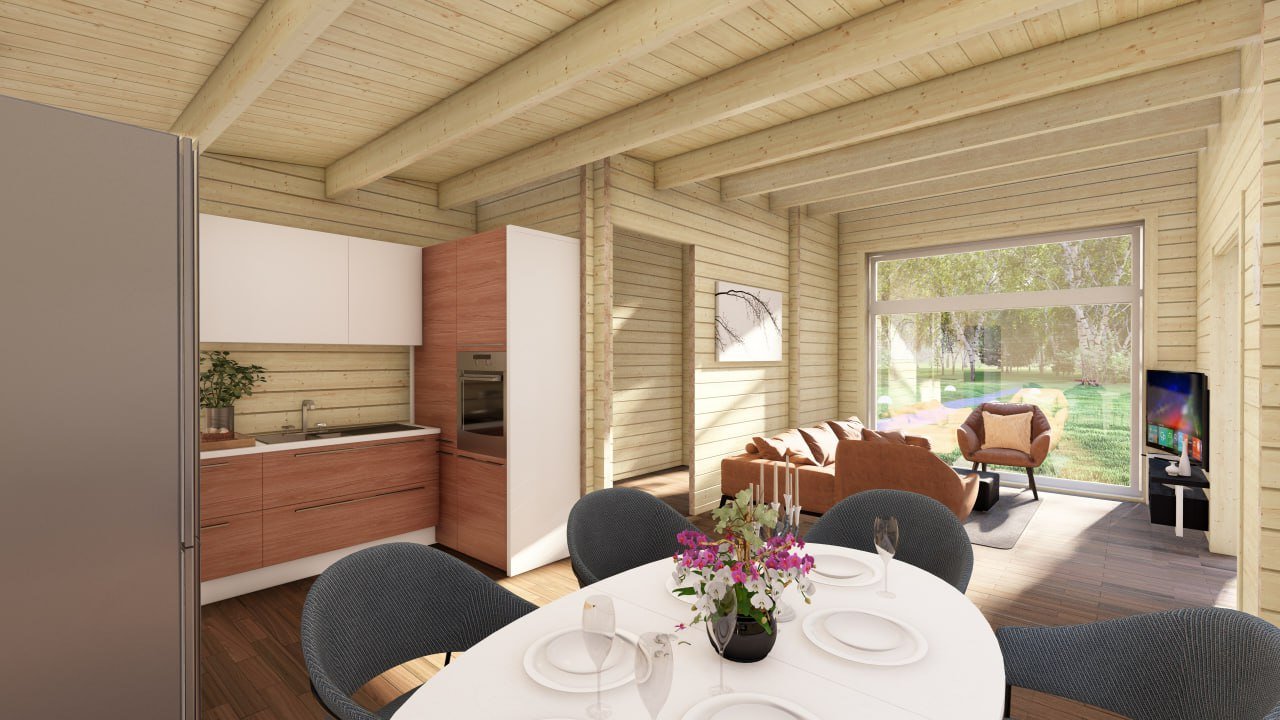

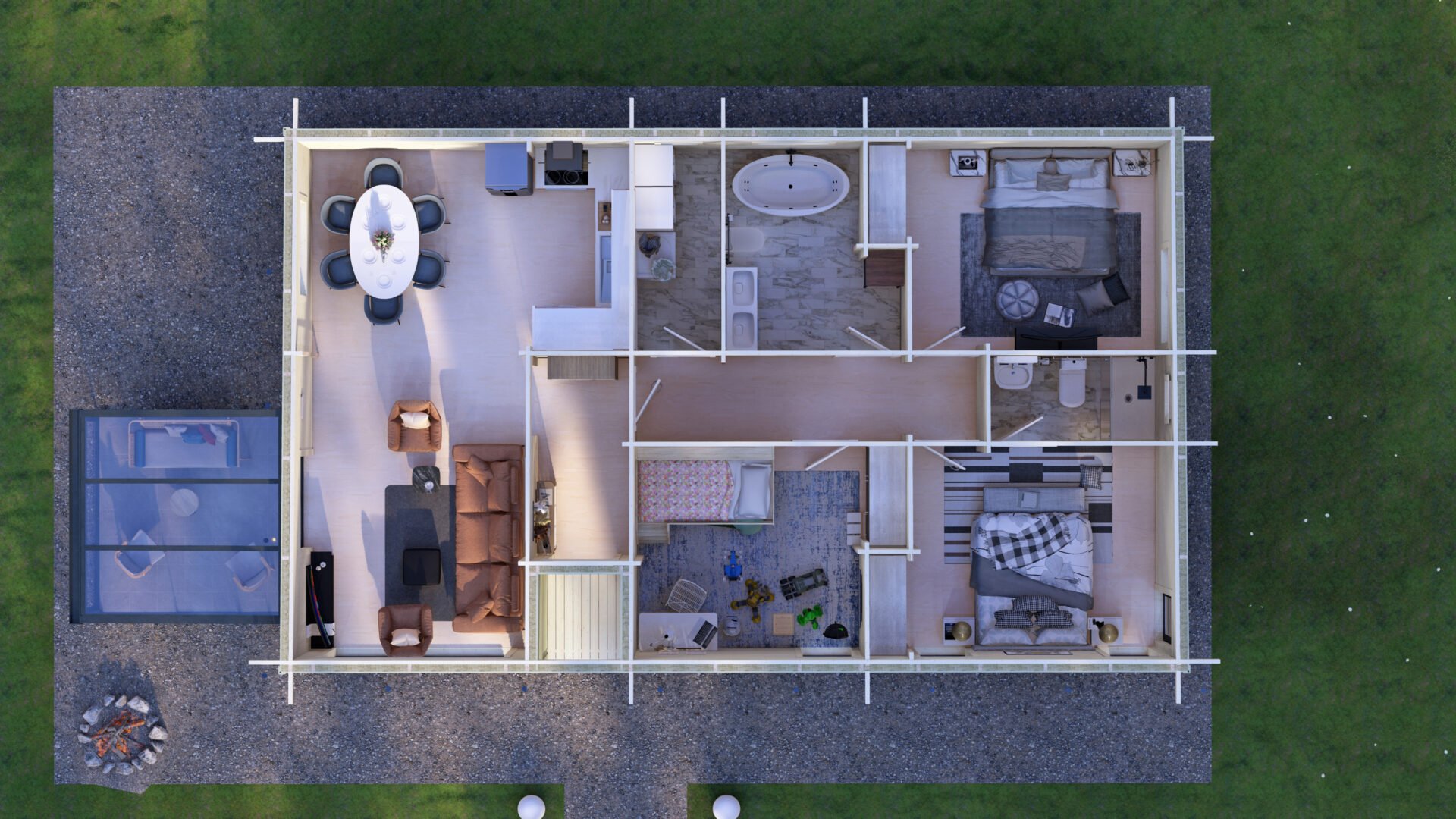

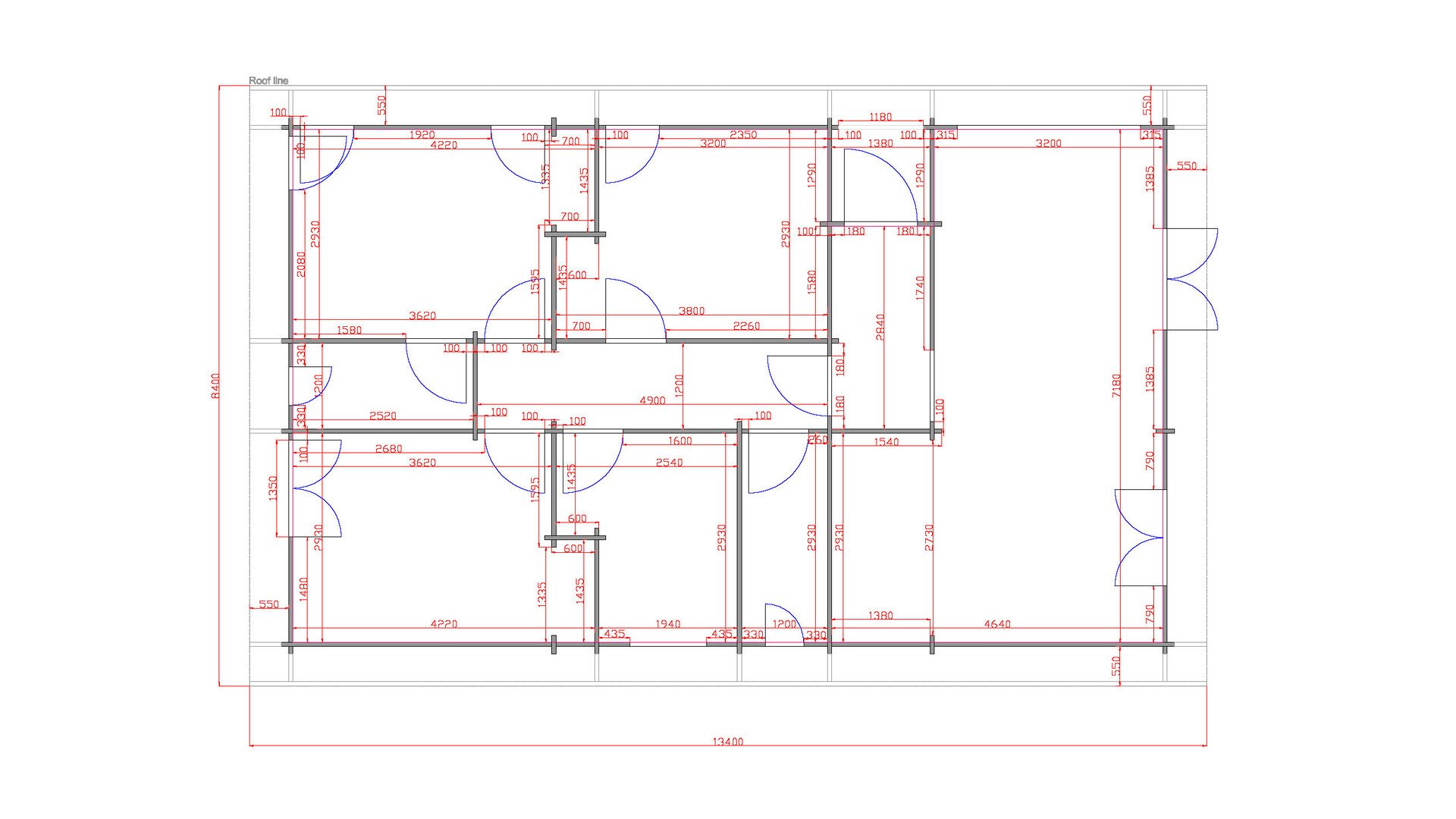

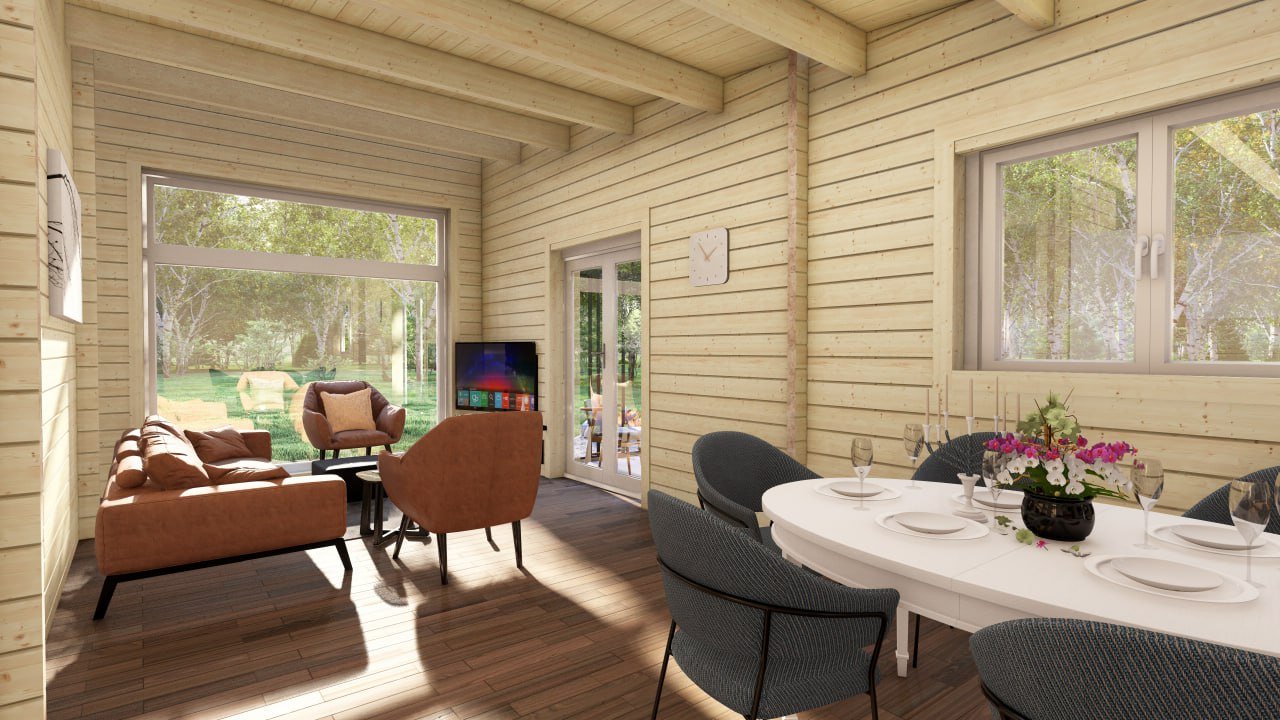

Measuring 12.5m x 7.5m this model accommodates 3 bedrooms – The Master bedroom has an ensuite bathroom. The spacious kitchen and living room area has an incredible vista with full length glass doors and windows optimising light & views. A family bathroom and a utility/storage room are sure to suit all your family’s needs.

When it comes to the design of your own log home, it is important to choose the style and features that are important to you.
Our 3 Bed B cabin can have either Timber cladding for a more traditional look, or you can opt for our maintenance-free Steel Cladding, to take your home to another level.
UPVC windows and doors come as standard,.
(White UPVC with Timber cladding & Black UPVC with Steel Cladding)

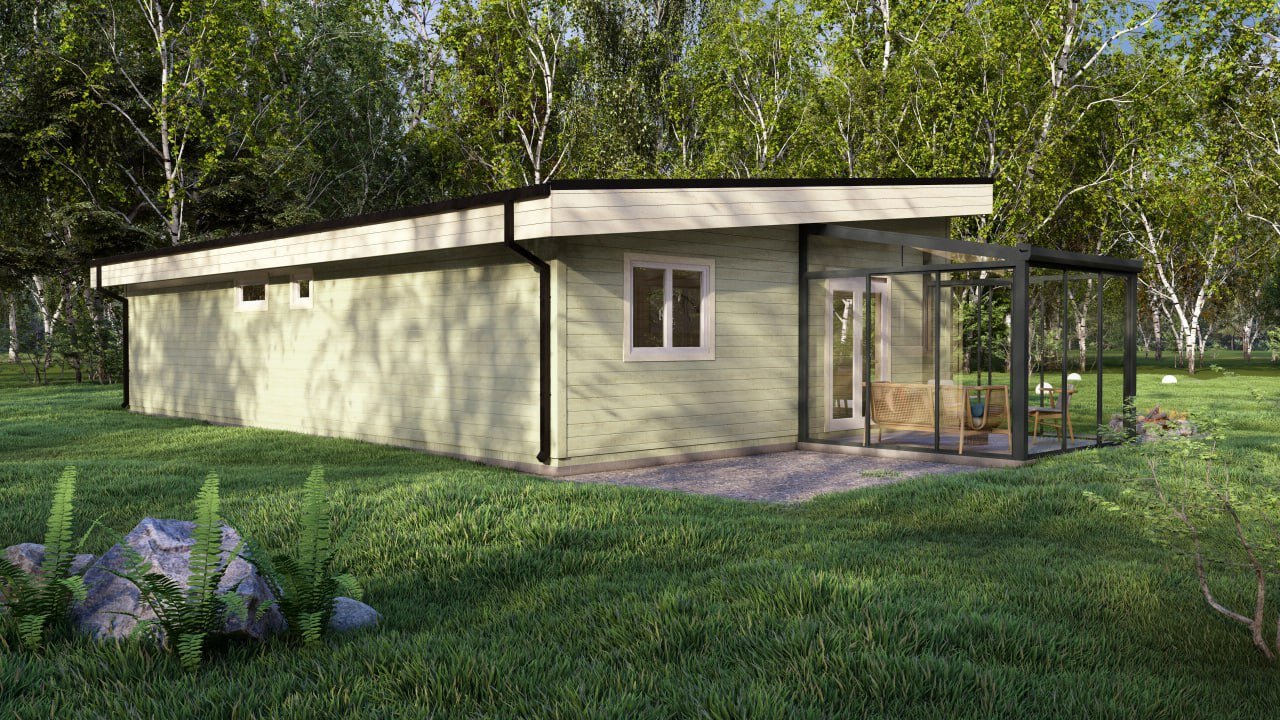

You can choose to put in an optional glass veranda (3m x 3m) on the gable end, which gives a high-quality finish to this superior Barn Style Log Home.

If you have any further queries or if this model is not exactly what you are looking for, we specialize in bespoke cabins and can create a cabin from your own custom design! Contact us today or call us on 01 564 1964 . We look forward to helping you.
